CHEETAH AND STAR RACK FRAME MACHINE RAM ADAPTERS FOR PULLING TOWER high quality
Specifications
| Return Shipping Will Be Paid By | Buyer |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Refund Will Be Given As | Money Back |
| Manufacturer Part Number | 770-152 |
| Brand | TPH |

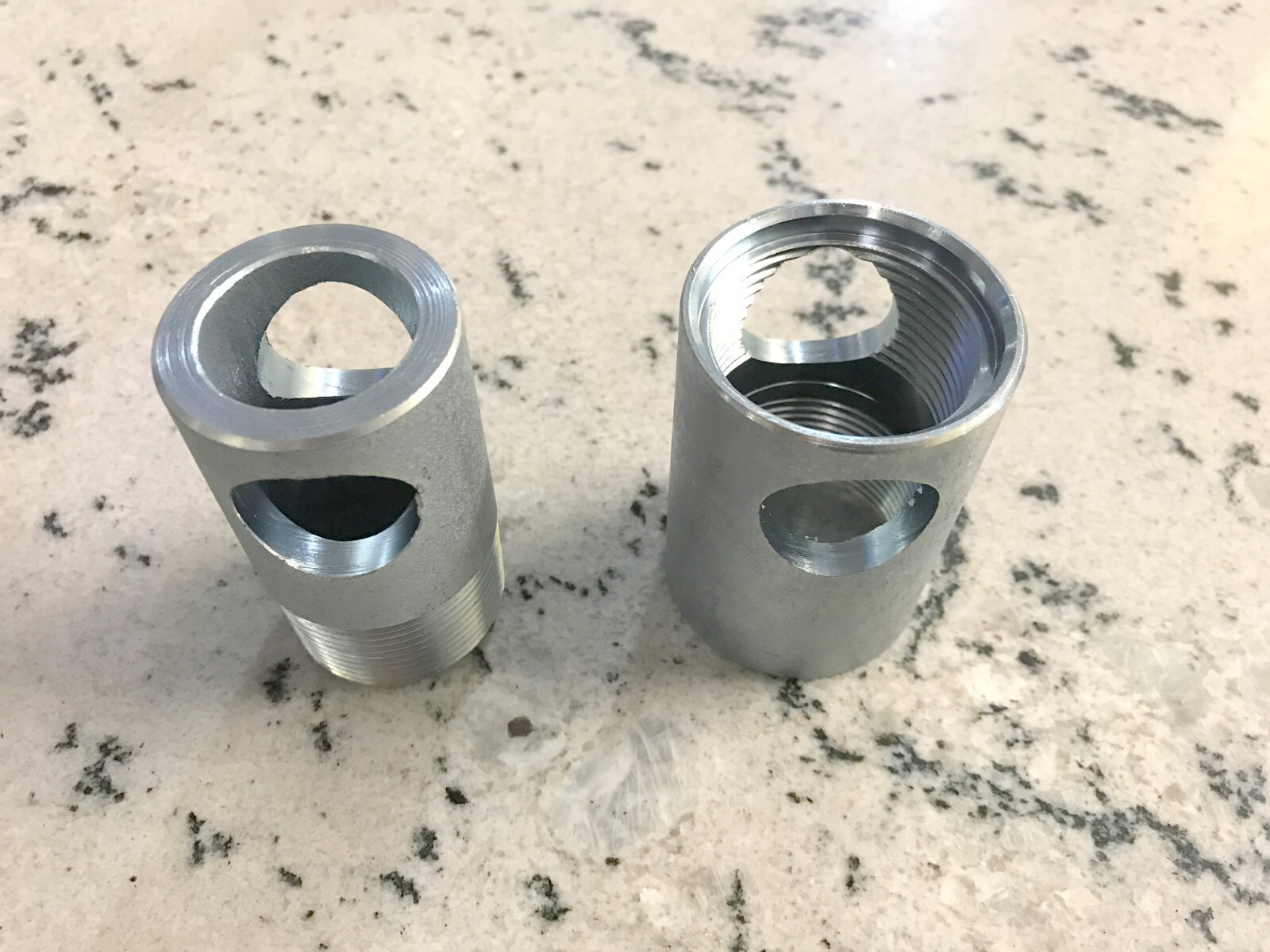

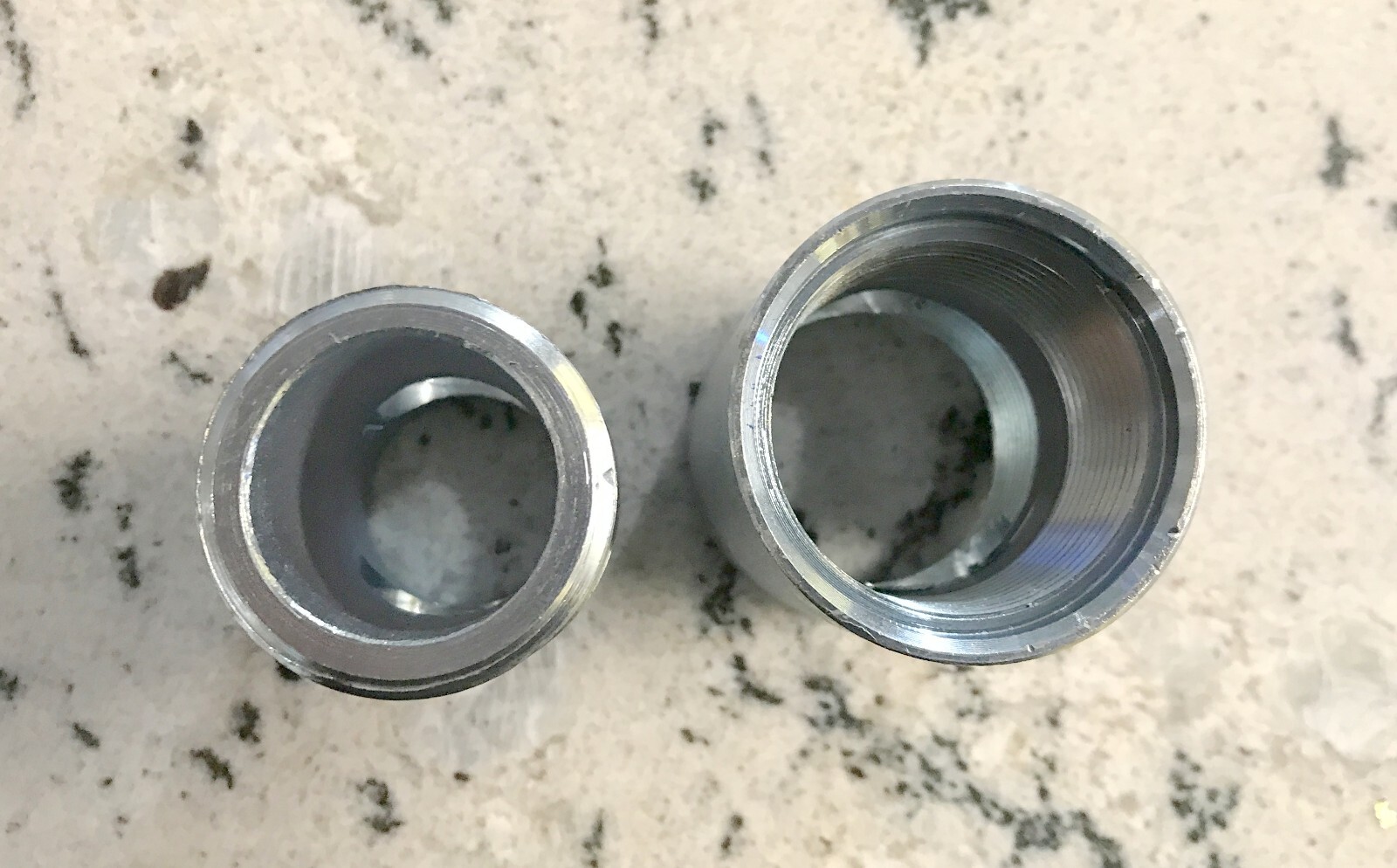

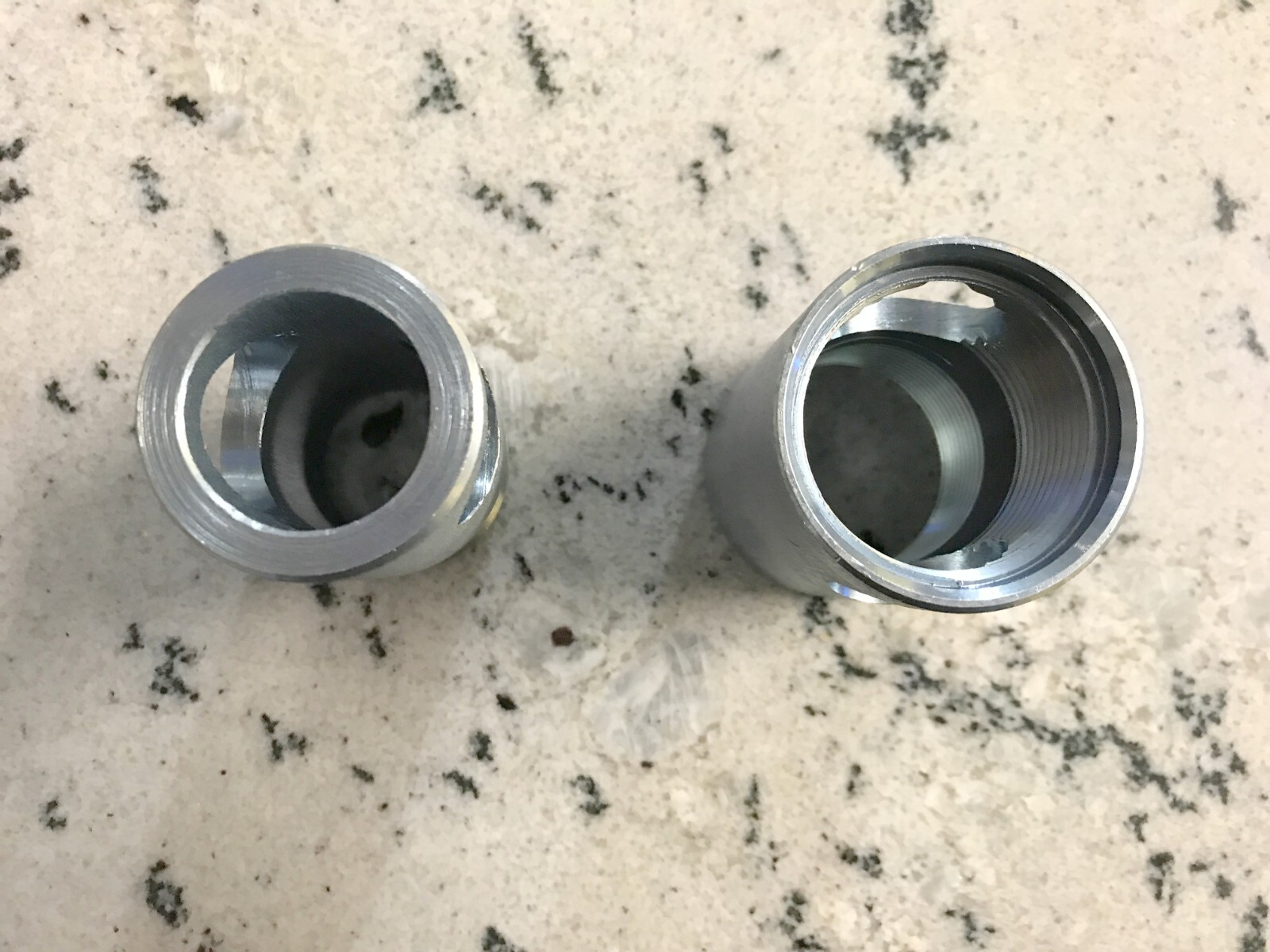

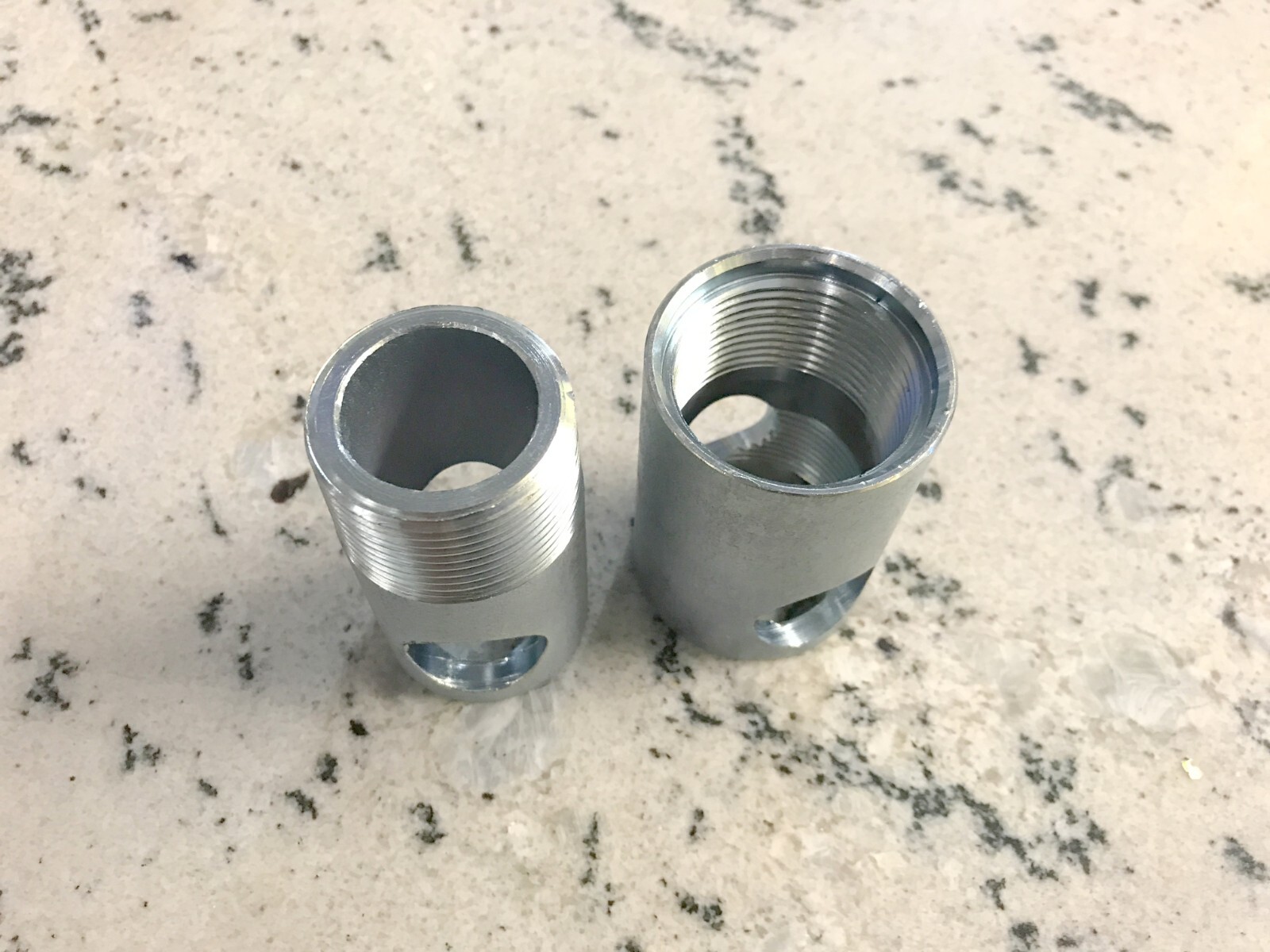

1-1/4 male NPT & 1-1/4 FEMALE NPT Chrome plated NPT = national pipe thread AKA plumbing thread.Hard to find male and female adapters for rams / cylinders on frame machine towers AND DOZER STYLE pullers as well. ACCEPTS A ONE INCH DIAMETER PIN1-1/4 NPT male adapter with 1 inch hole schedule 80 pipe rating thick tough metal. For rams / cylinders with female threaded bottoms.1-1/4 NPT female adapter with 1 inch hole schedule 80 pipe rating thick tough material. For rams / cylinders with female threaded top.These adapters fit many machines but famously used for many years on Cheetah brand. When installing the bottom adapter please place your ram in a vise and with a large wrench or bar through the holes sock it in as far as possible. These male adapters fail and strip if they are not screwed as far as possible into ram bottom.When installing your female adapter it is recommended to remove the top male factory adapter from your ram otherwise it will spin and could crack the return spring inside the ram. If you cannot remove the top adapter I have used a pump to extend the ram and with aluminum angle placed the shaft whilst open into a vise not to damage shaft and then install female adapter and avoid spinning the shaft.
