Detroit Diesel Idler 3 Cantilever Tool J-47487 + Crankshaft TDC Locating J-48630
Specifications
| Return Shipping Will Be Paid By | Seller |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Refund Will Be Given As | Money Back |
| Brand | Unbranded/Generic |
| Manufacturer Part Number | Does not apply |
| Finish | steel |
| Fitment Type | Direct Replacement |
| Mounting Hardware Included | Yes |

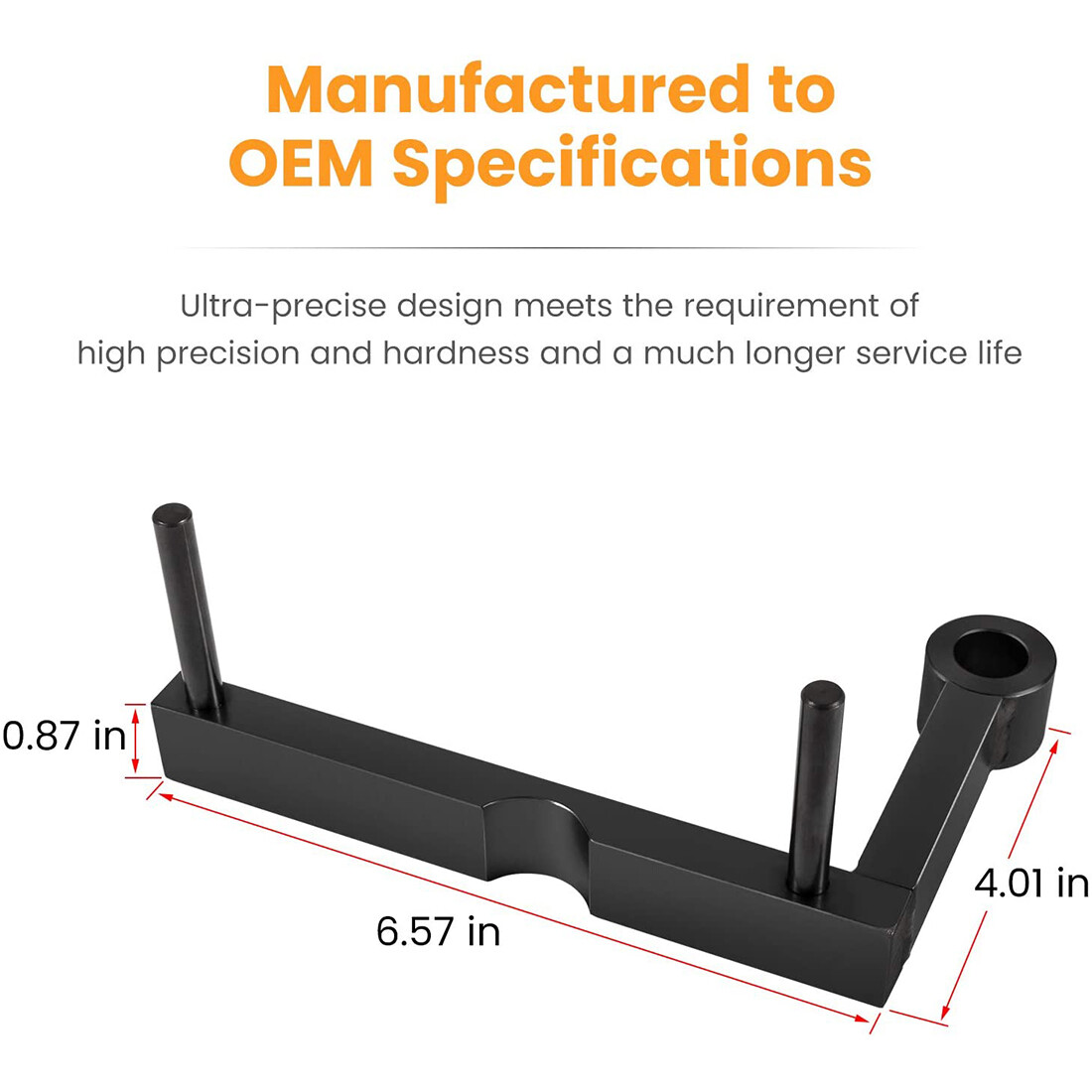

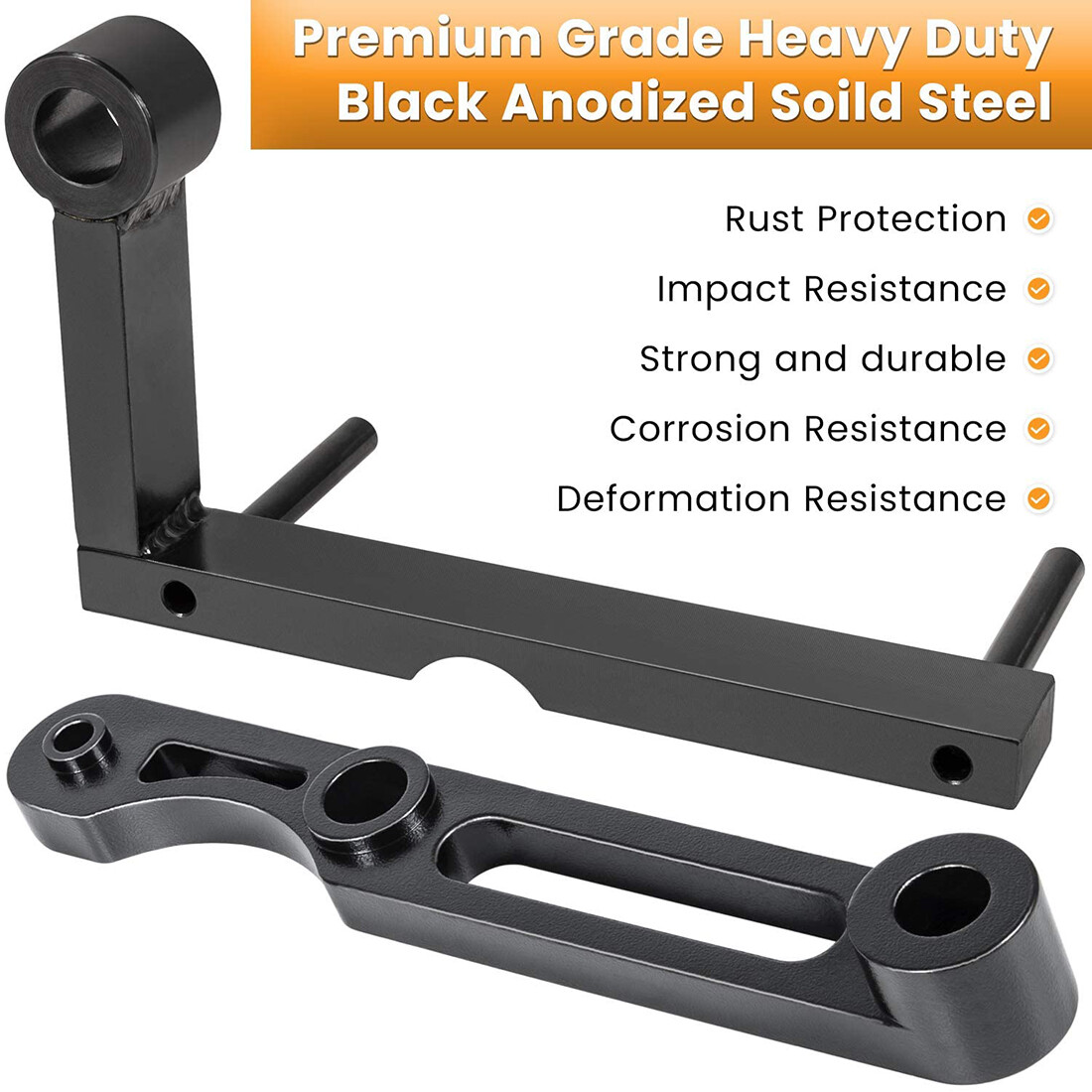

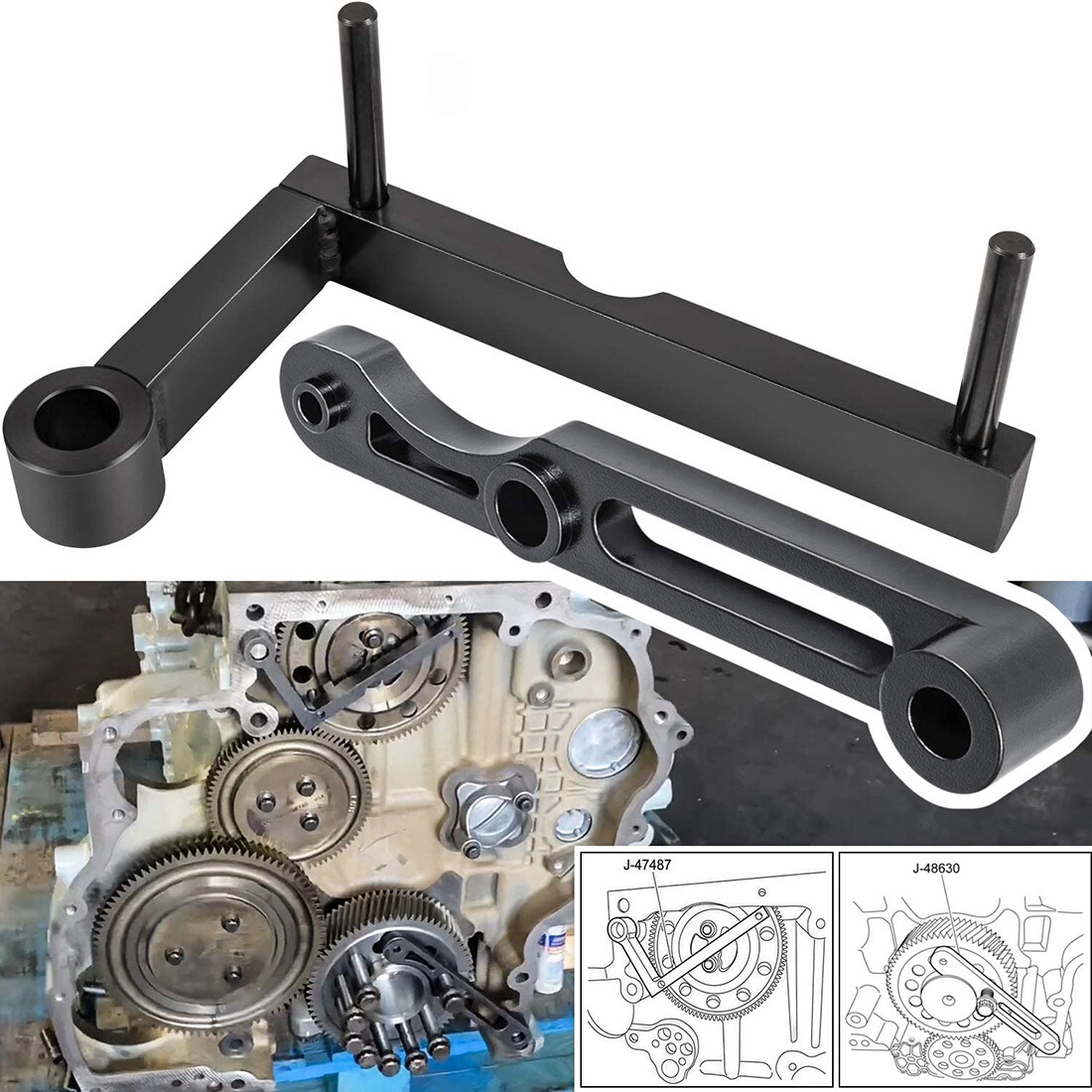

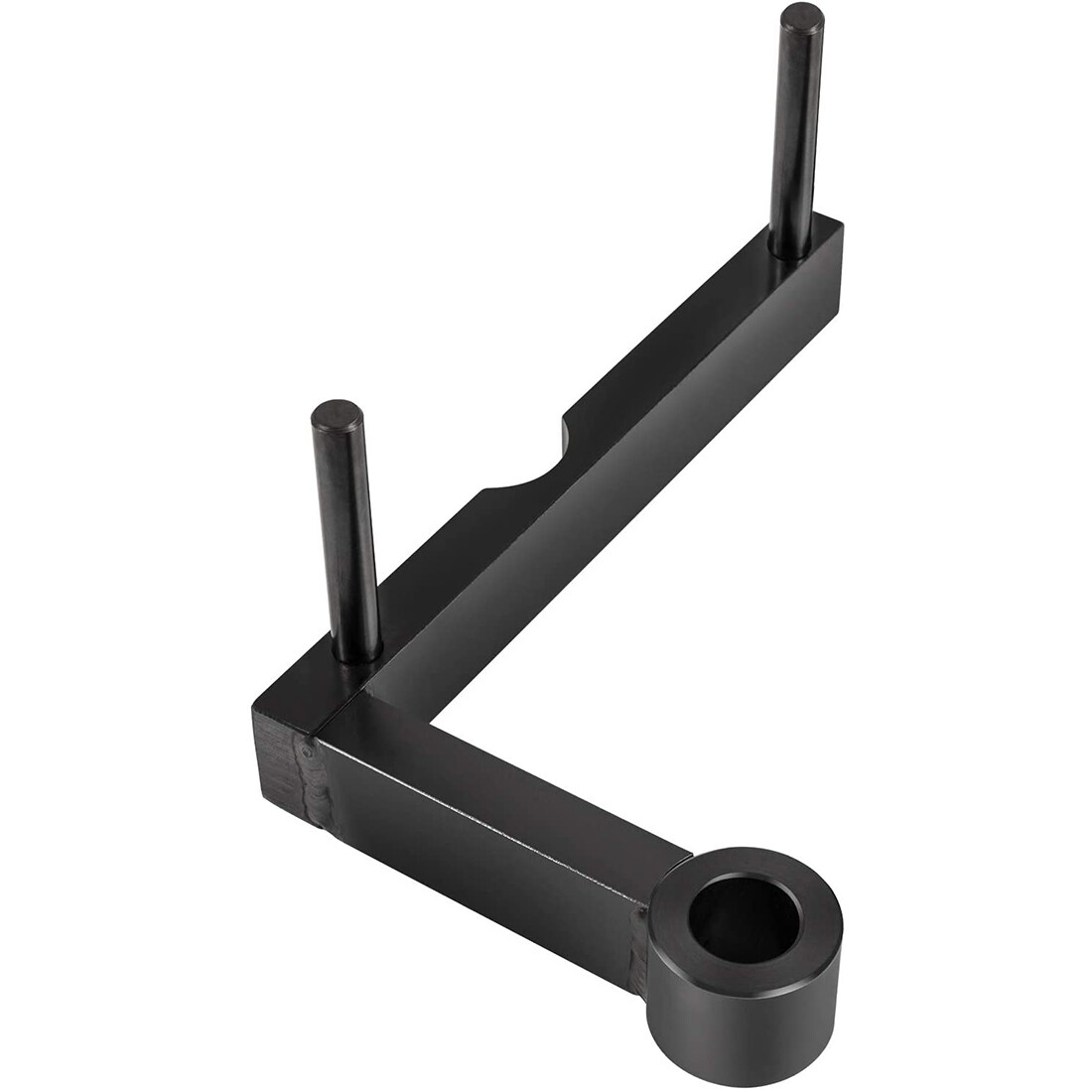

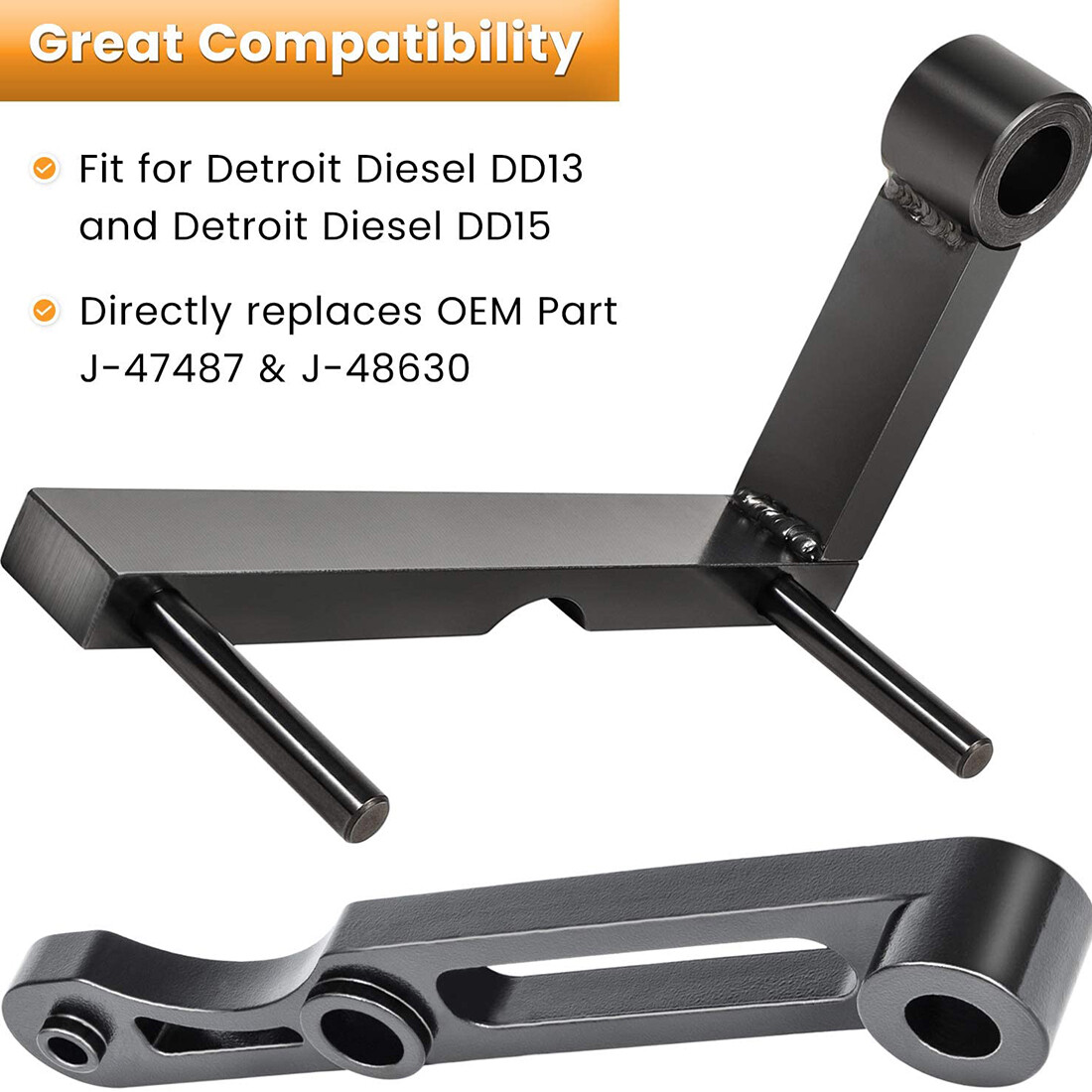

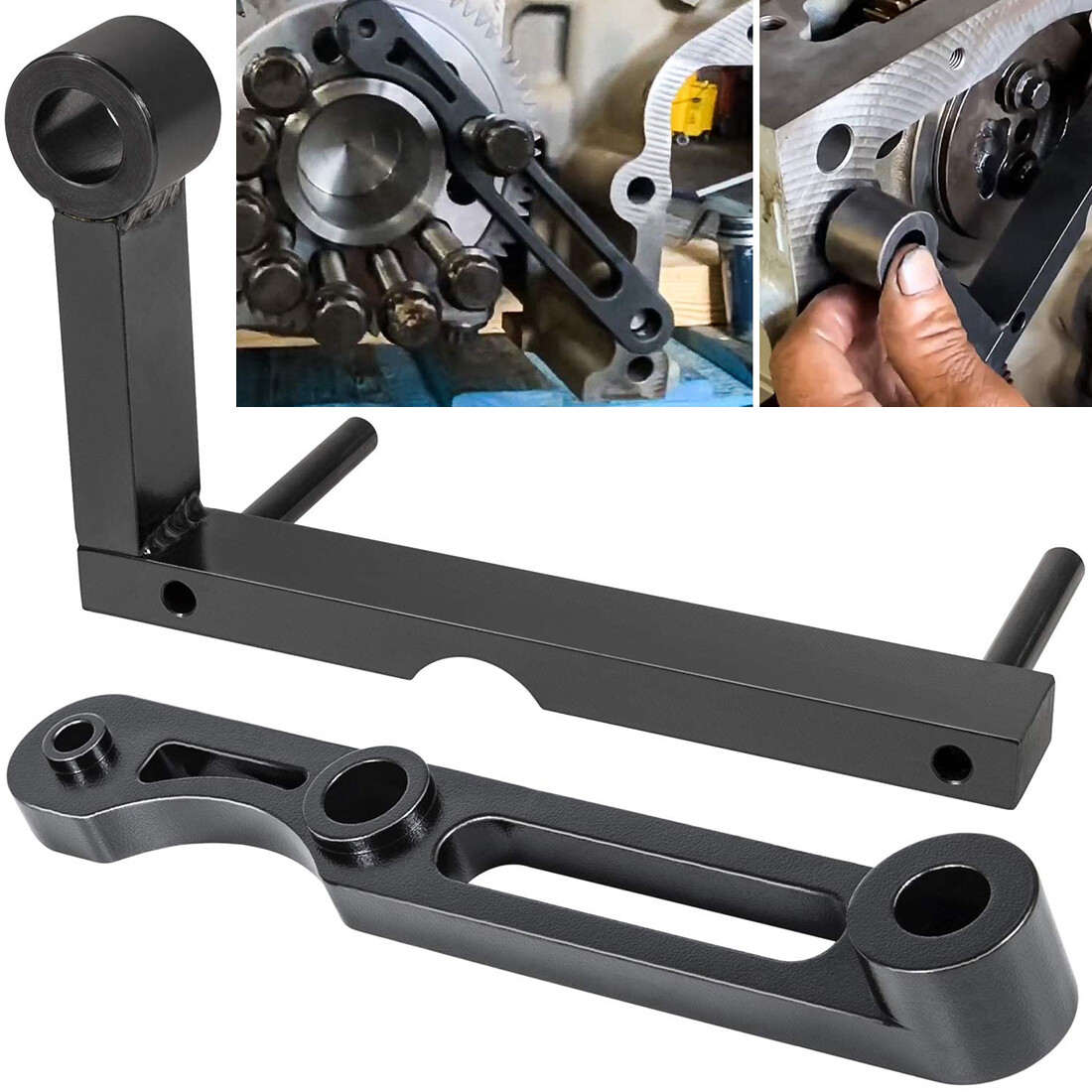

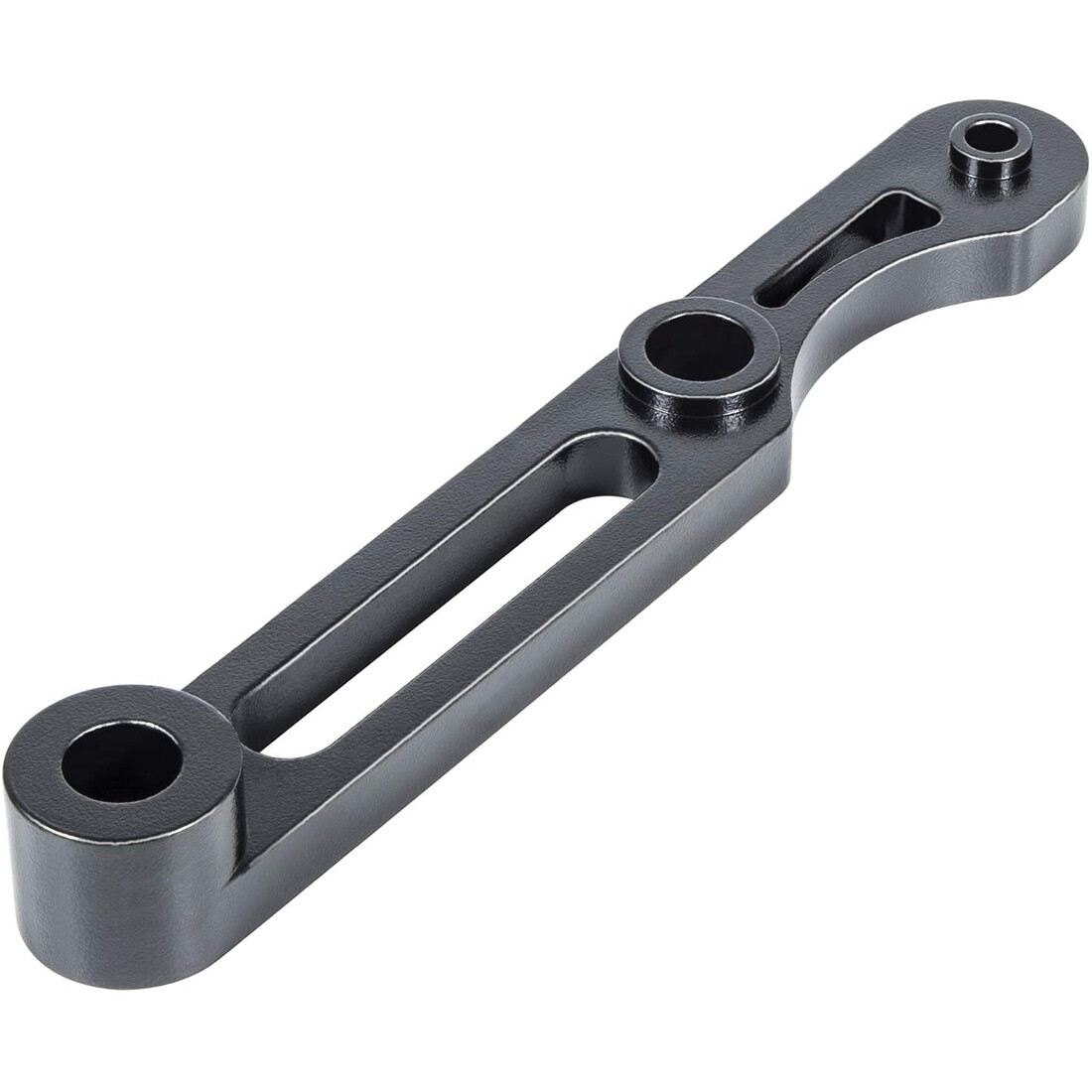

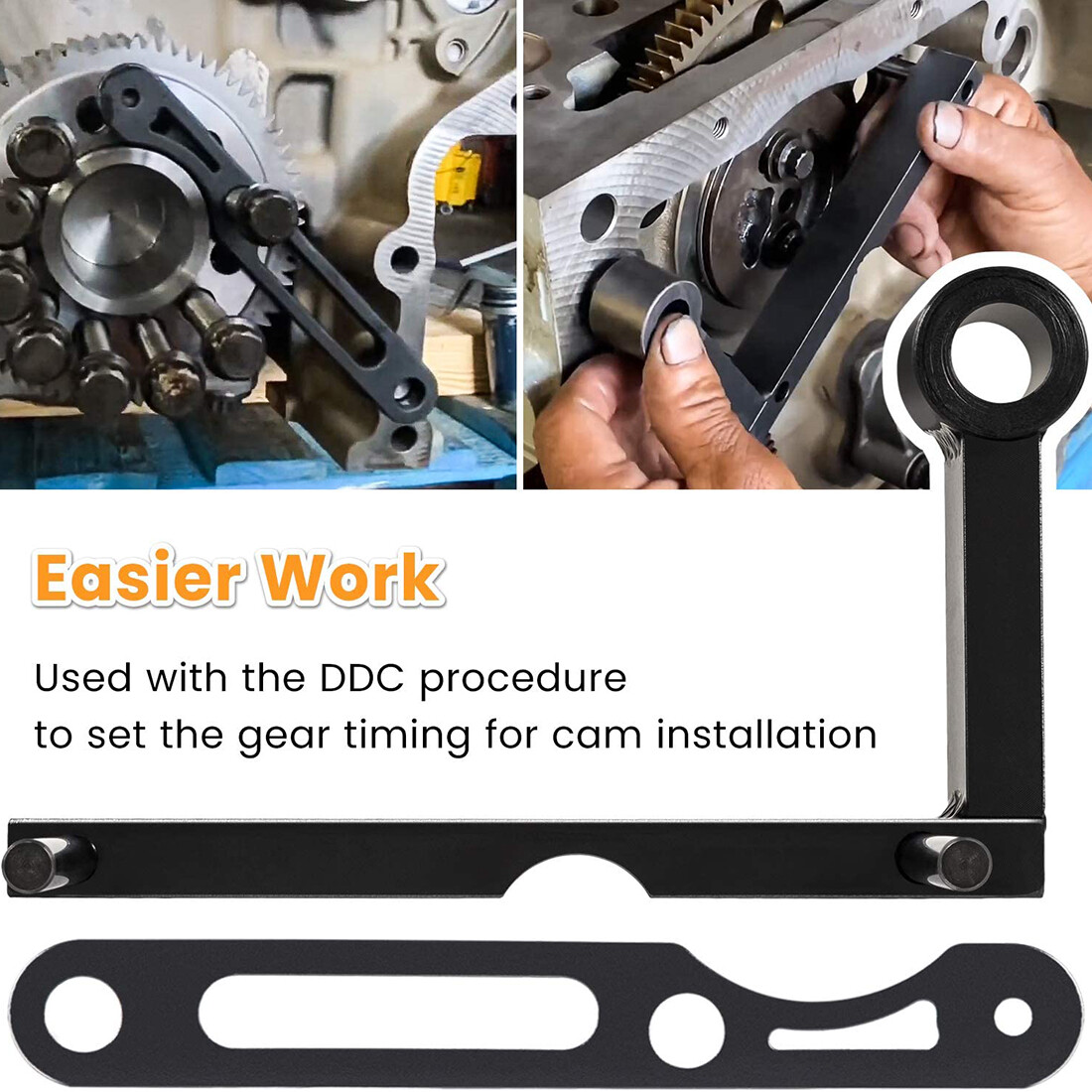

Detroit Diesel Idler 3 Cantilever Tool J-47487 + Crankshaft TDC Locating J-48630 Fitment: Perfectly fit for Detroit Diesel DD13 and Detroit Diesel DD15 Features: (1) Manufactured to OEM specifications. Directly replaces OEM Part J-47487 & J-48630 and work in an easier way to save your time and money . (2) This tool is used with the DDC procedure to set the gear timing for cam installation . (3) Made of high hardened grade steel,with black oxide coating which is high strength, rust-resistance, no deformation and durable to long-life service . NOTE: Coat the inside of the gears, bushings and gear train with clean oil before installation. Install the crankshaft gear on the crankshaft. Rotate the crankshaft to Top Dead Center (TDC) on cylinder No. 1. Install and lock crankshaft TDC locating tool into place with bolt. Install spindle into idler gear No. 5. Install idler gear No. 5 onto the cylinder head using shoulder bolt. Install two bolts into idler gear No. 5 and hand tighten. Remove the shoulder bolt. Torque to 60-65 N·m (44-48 lb·ft). Install the spindle into idler gear No. 3. Install the cantilever tool (J-47487) onto idler gear No. 3. Install two bolts into the spindle and idler gear No. 3; snug the bolts. Remove the cantilever tool (J-47487) from idler gear No. 3. NOTE: When idler gear No. 3 and cantilever for idler No. 3 tool are installed to the gear case, cantilever for idler No. 3 tool should come off of the gear with ease. If the timing tool is not easily removed, that is an indication that the gears are not timed. Check the gear lash between idler gear No. 3 and idler gear No. 5. Install a dial indicator onto gear case and position the stem to rest between the teeth on large gear of idler gear No. 3; zero out the dial indicator. Hold idler gear No. 5 with a screwdriver to check gear lash. The lash reading on the dial indicator should be 0.079 - 0.305 mm (0.003-0.012 in.). When correct gear lash is established, torque idler gear No. 3 to 60–65 N·m (44-48 lb·ft). Install the cantilever tool (J-47487) onto idler gear No. 3. Install the spindle and gear plate onto the idler gear No. 2. Install the spindle, idler gear No. 2, and the gear plate onto the cylinder block. Torque to 100 N·m (73 lb·ft). Remove the air compressor to the cylinder block (if installed). Refer to section "Removal of the Air Compressor". Install the thrust washers and spindle onto the idler gear No. 1. NOTE: For ease of installation on idler gear No. 1, roll the gear into idler gear No. 2. Install the spindle, thrust washers, idler gear No. 1, and gear plate onto the cylinder block by engaging the teeth of idler gear No. 1 into the crankshaft gear teeth first, then roll upward into idler gear No. 2. Torque to 100 N·m (73 lb·ft). Install the air compressor. Refer to section "Installation of the Air Compressor". NOTE: When installing idler gear No. 4, verify that the part number on the gear is facing the block. On the DD15 and DD16, with the cone of the idler gear No. 4 facing outward, install the thrust washer onto the spindle then install the spindle onto the idler gear No. 4. On the DD15 and DD16, install the assembled thrust washer, spindle and idler gear No. 4 onto the cylinder block. Torque to 100 N·m (73 lb·ft). NOTE: Tool J-47487 should remove with ease. If not, check gears for proper installation. Remove the cantilever tool (J-47487) for idler No. 3. Package included: 1pcs idler 3 cantilever tool + 1pcs Crankshaft TDC Locating Tool Orders will be ship out within 1-3 business days after payment has cleared. Orders from Saturdays, Sundays or holidays will process on next business day and will be ship within 24 hours. Please allow 10-30 days for international deliveries. Some shipments could take longer subject to your local customs authorities. United states 2-5(days) Any defective items received can be replaced or refunded. Please contact us with the item number, eBay ID and defect description within 7 days after the date of package arrived. No Claim will be accept after 7 days. If you meet any problem after receiving our product, please feel free to contact us. We will try our best to solve your problem. About Feedback: Please contact us before leaving Neutral or Negative feedback if you are not satisfied our service or products. Good communication is helpful for both of us to resolve any problems and issues. We work hard to make sure EVERY CUSTOMER 100% SATISFIED and resolve any problem for you and always leave positive feedback to all our customers. ● Due to the long transit time, the items may be damaged during transportation. If the items are damaged, please contact us before leaving the feedback. ● Negative or Neutral feedback does not resolve any underlying issues that you may be experiencing as a buyer.Any question or unsatisfaction please contact us with ebay message,we will sincerely solve for you. If you are satisfied with our service, please leave us positive 5-Detailed Selling Rating (DSR). Thanks!
