for Dodge 5.7L Hemi Motor Broken Exhaust Manifold Bolt Stud Drill Template 71500
Specifications
| Return Shipping Will Be Paid By | Seller |
| Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 60 Days |
| Brand | Ordertrade |
| Manufacturer Part Number | 71500 |
| Manufacturer Warranty | 1 Year |
| OE/OEM Part Number | 71500 |
| Vintage Part | Yes |

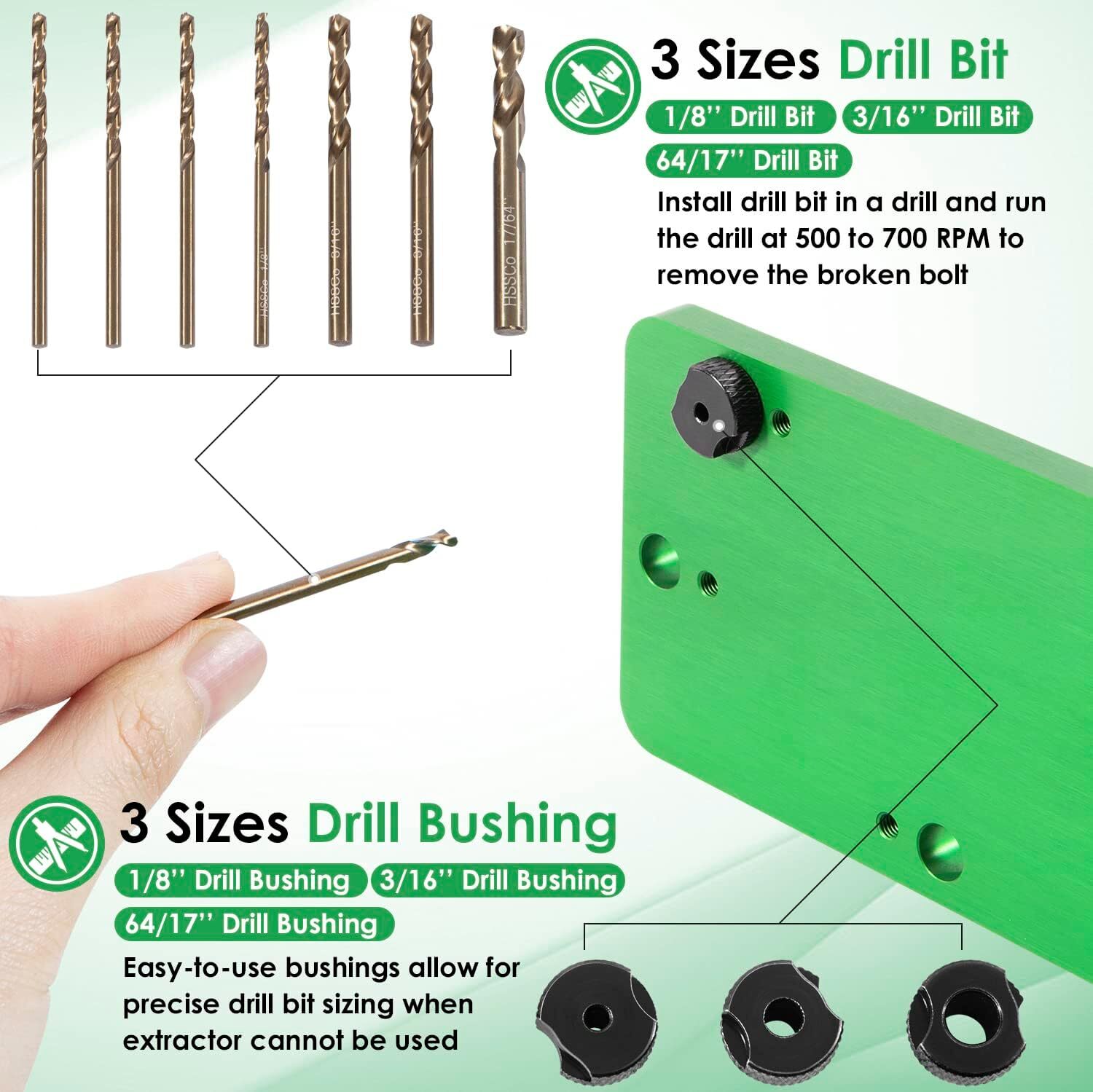

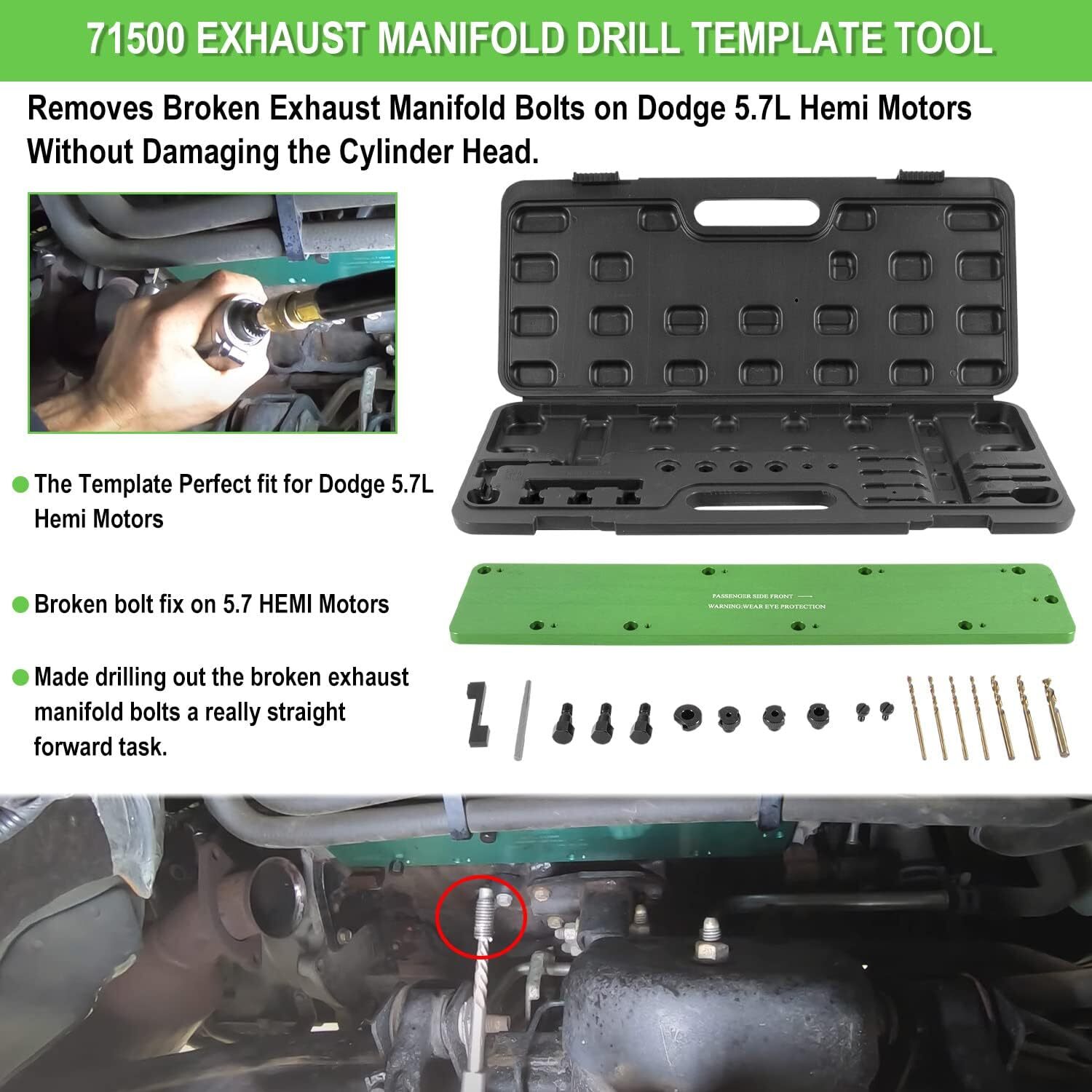

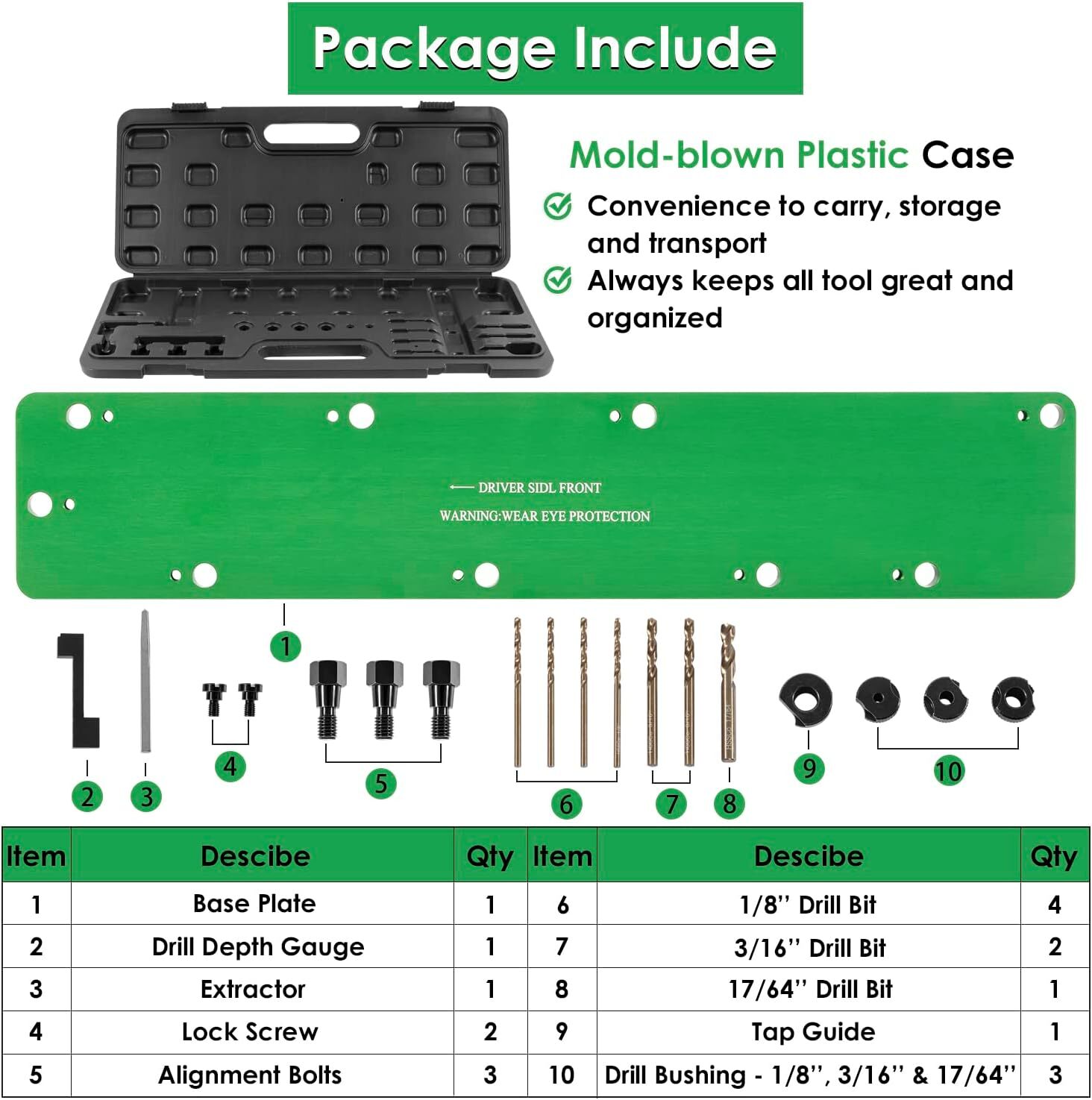

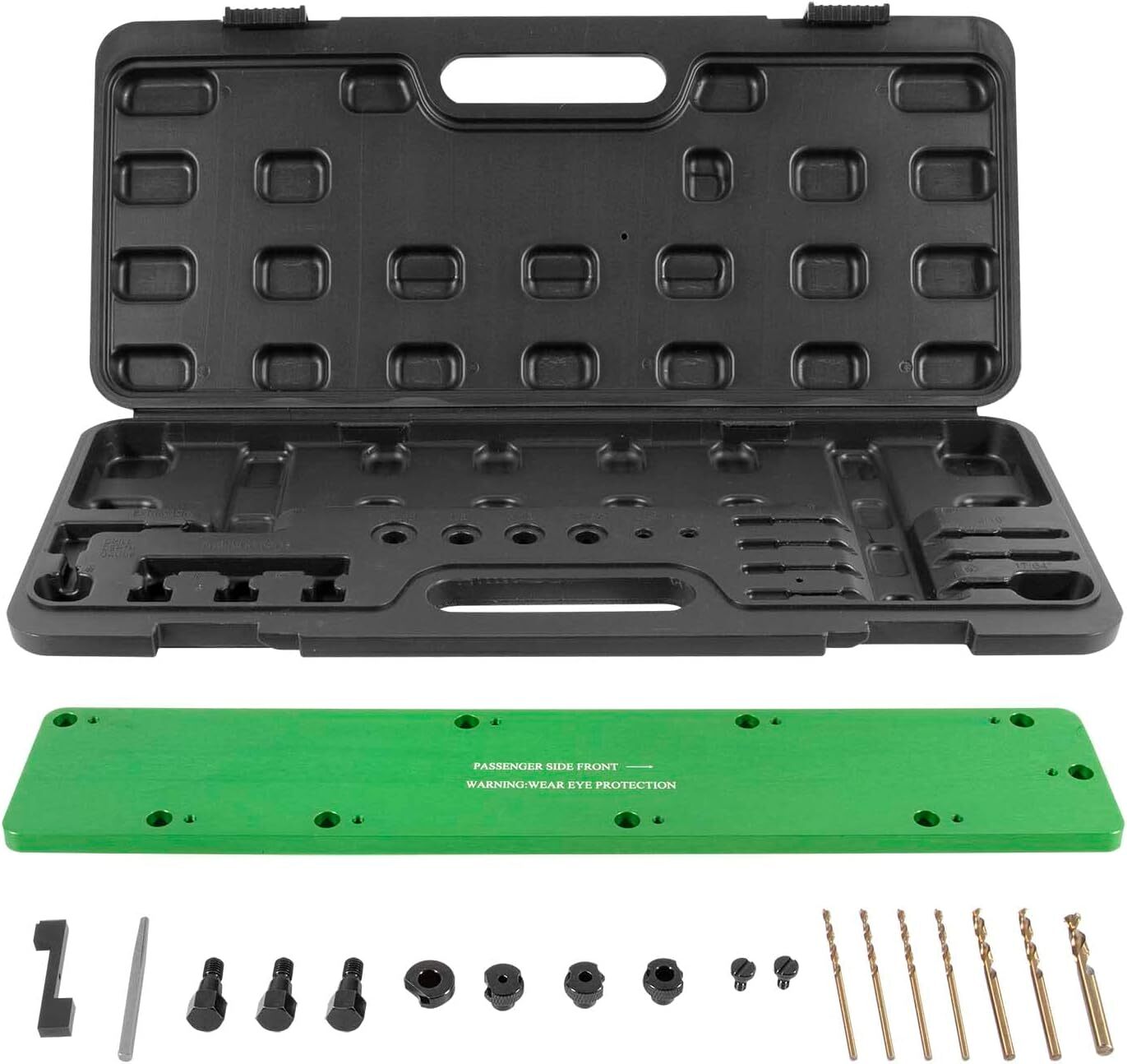

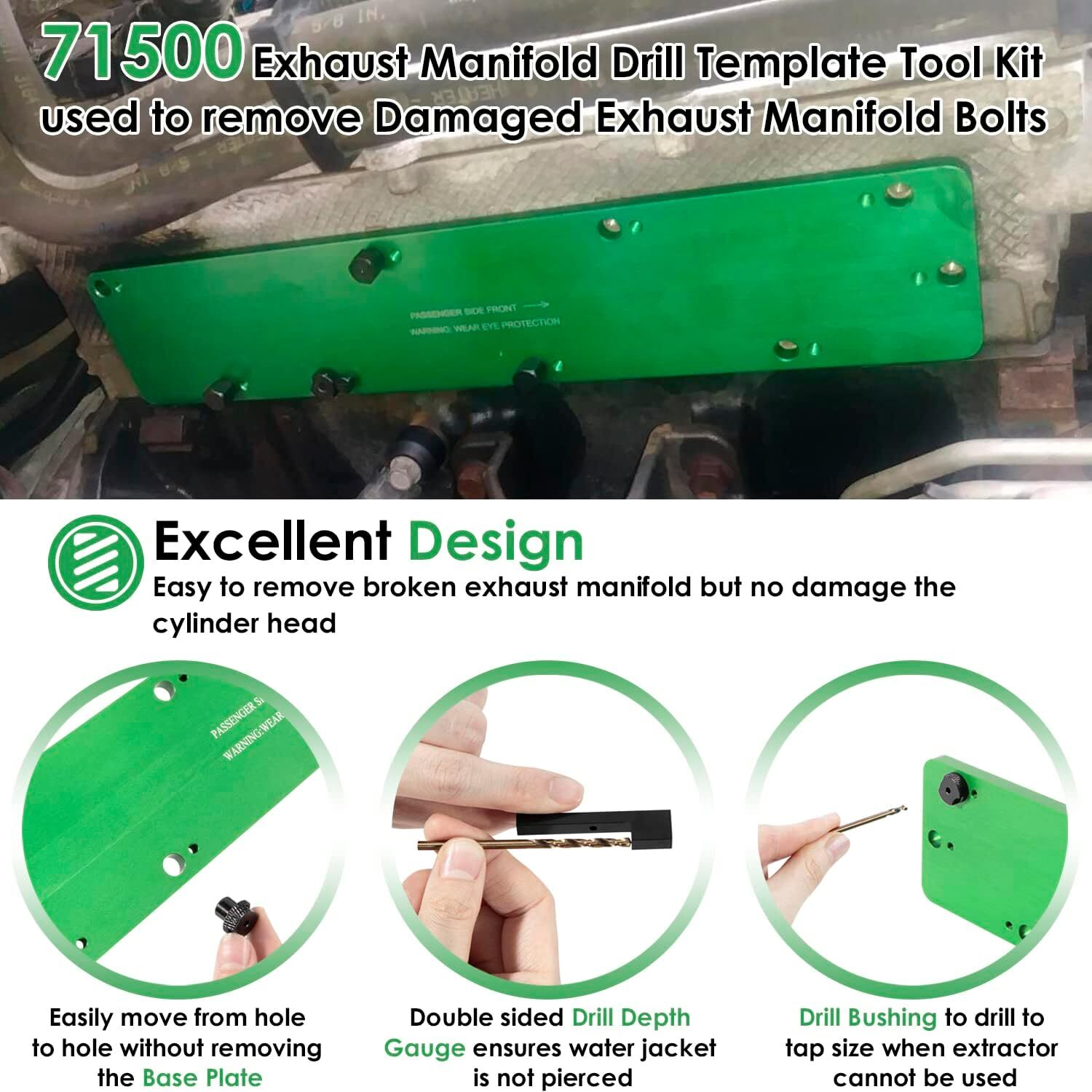

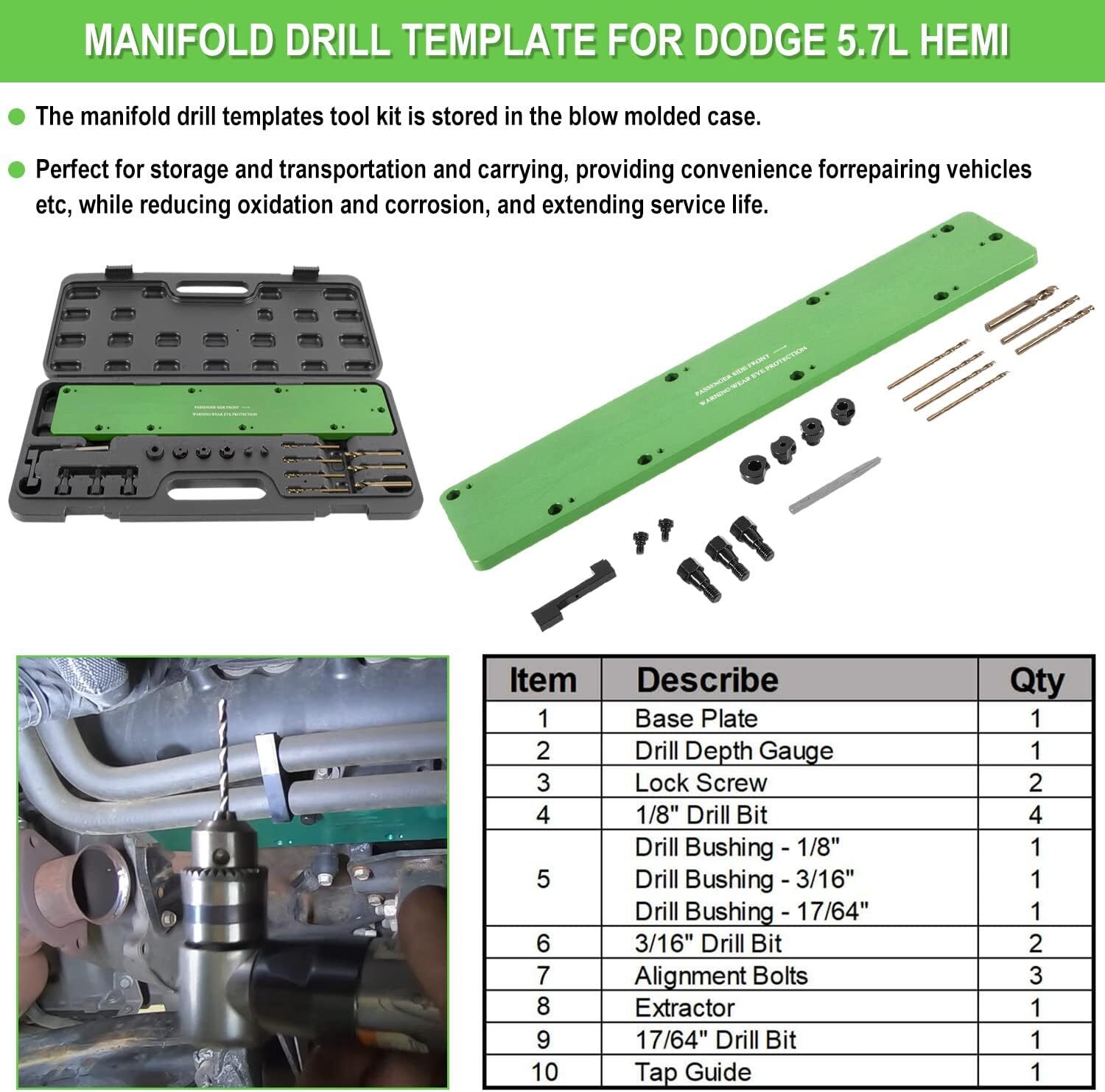

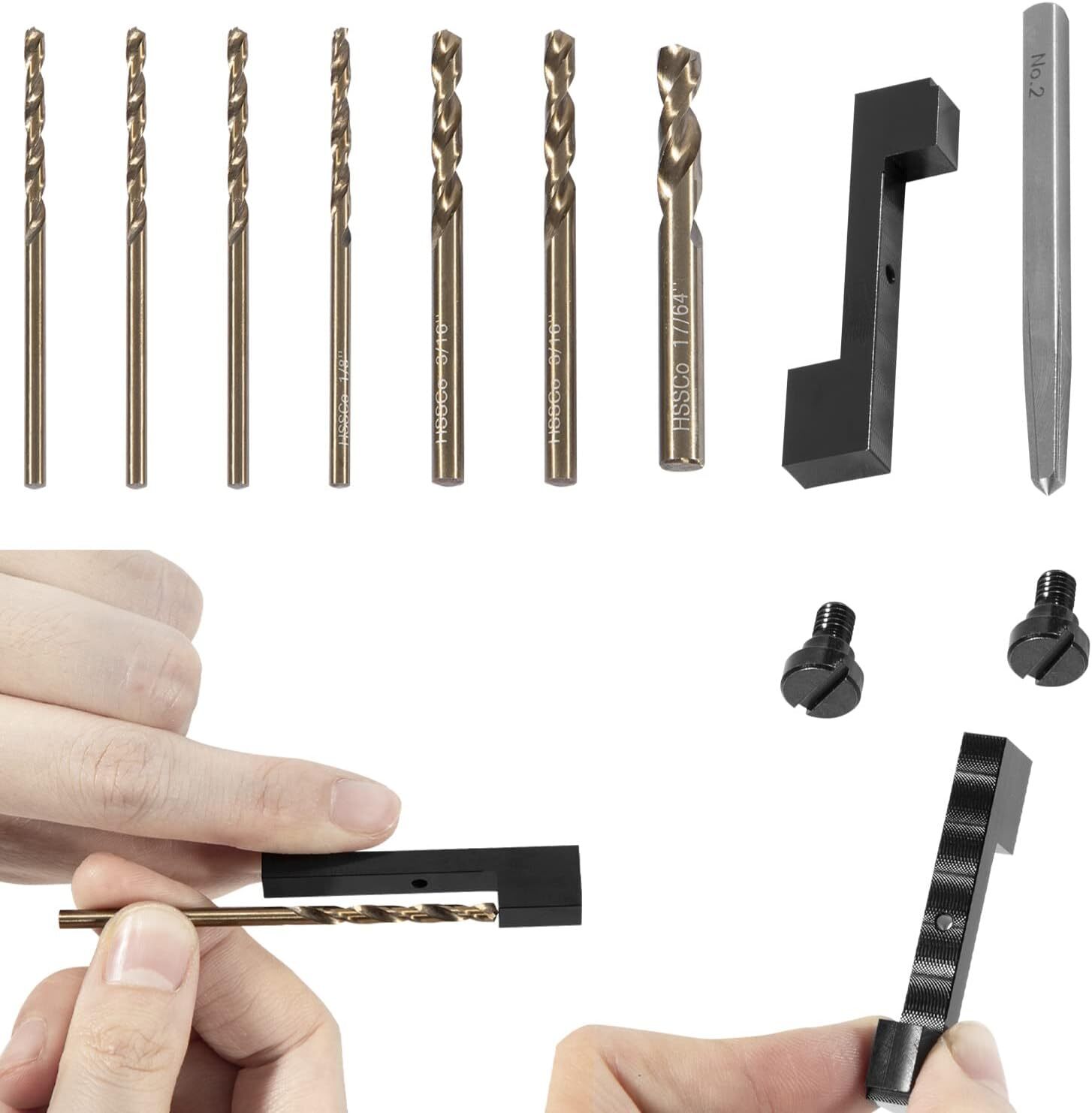

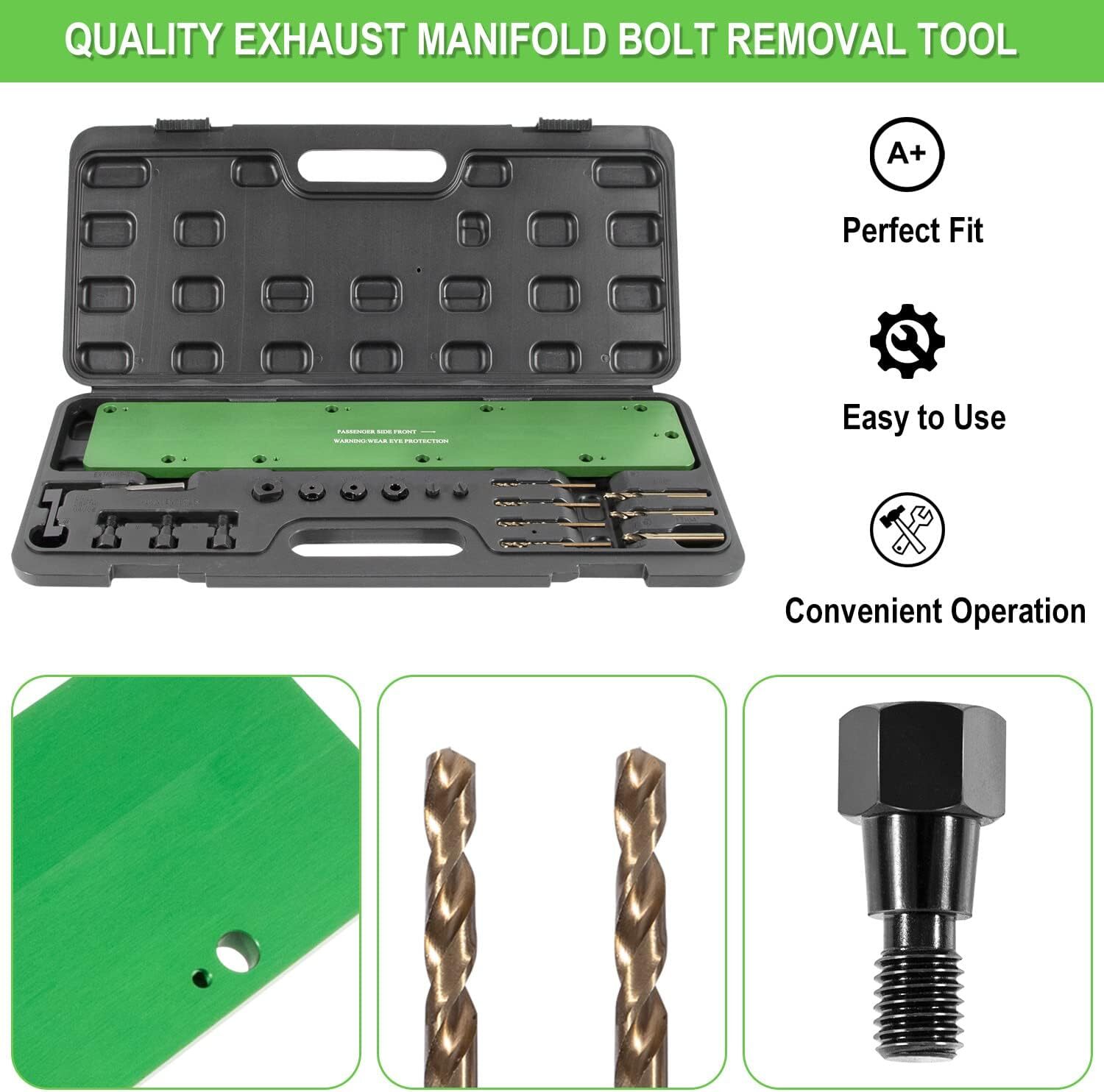

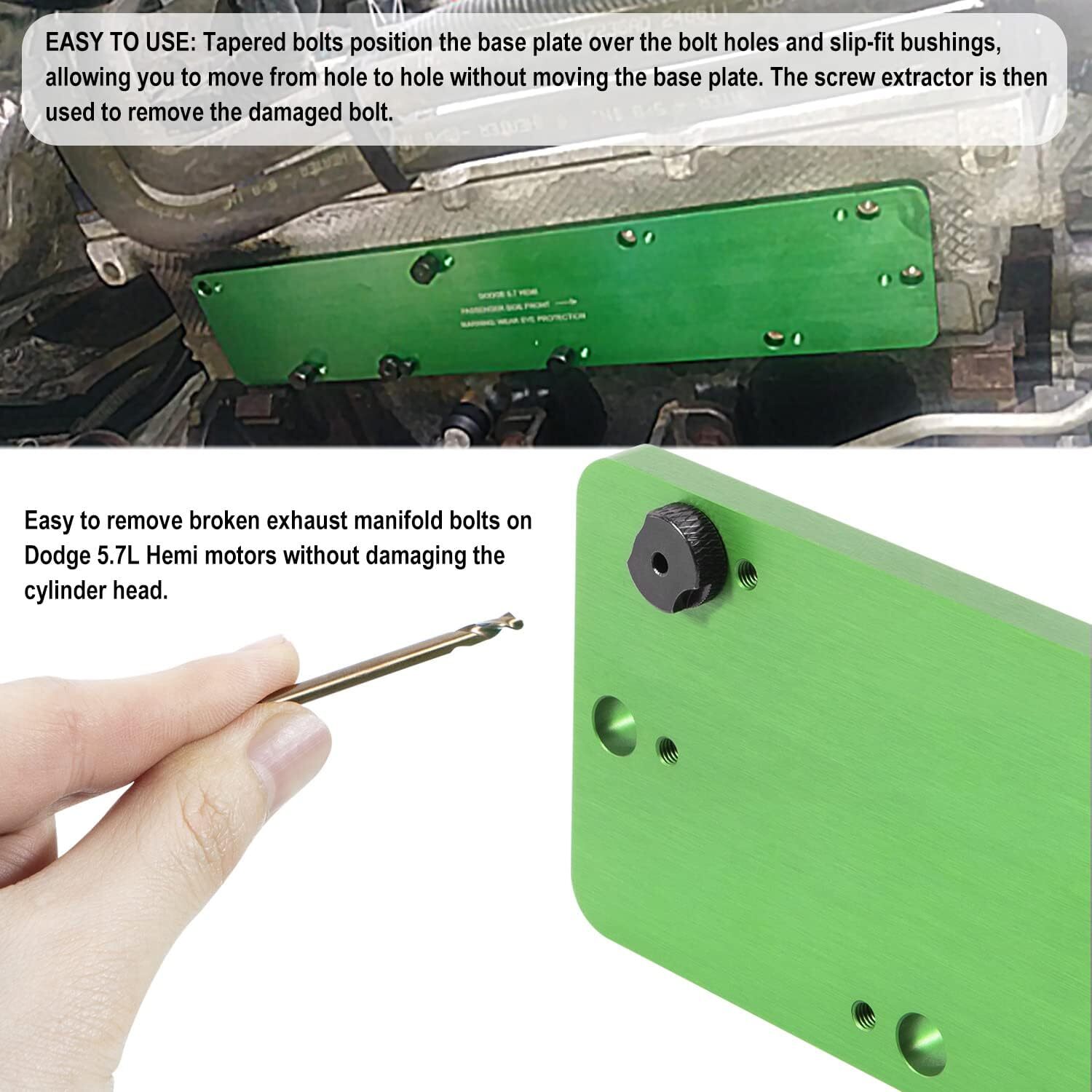

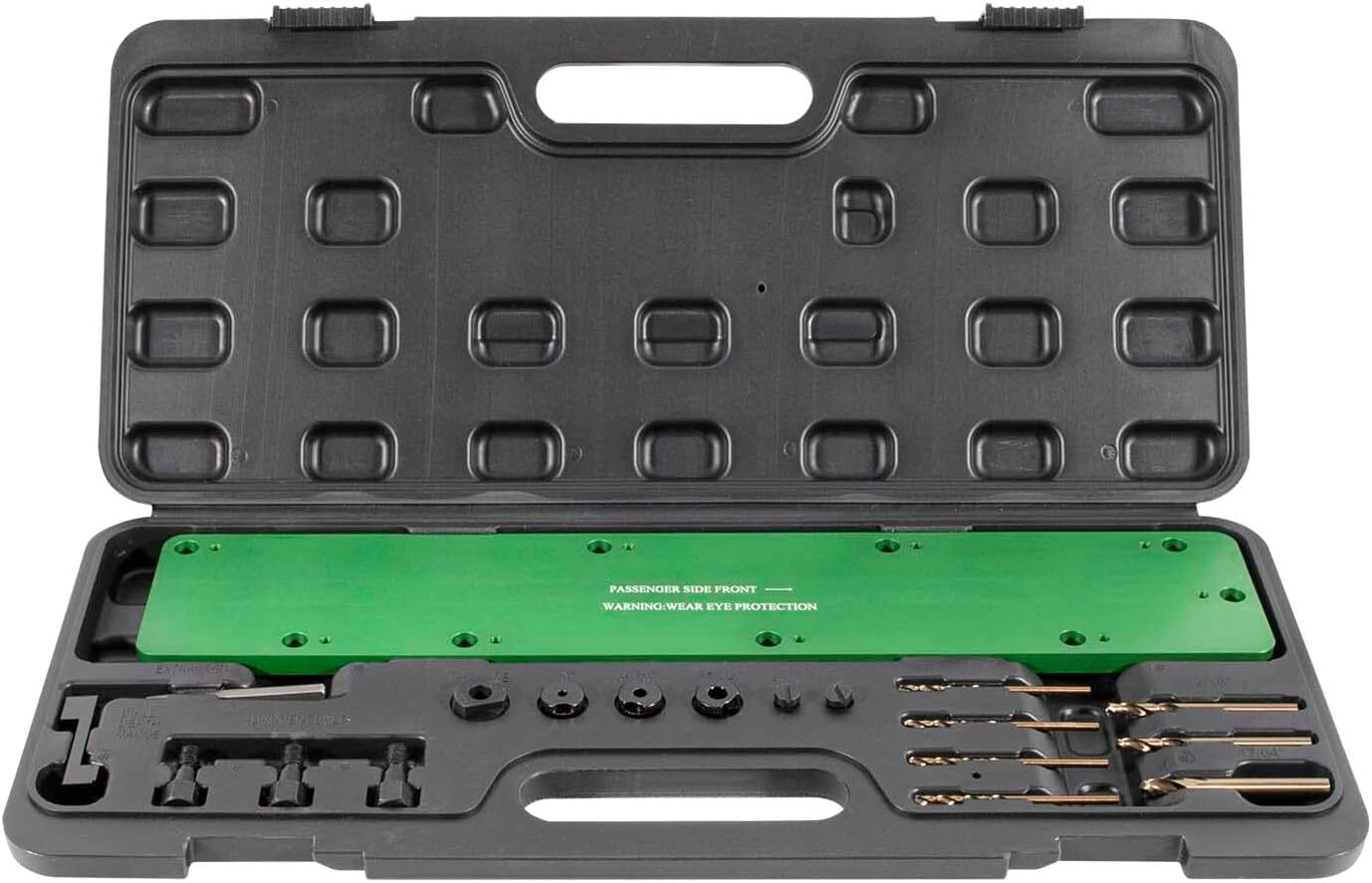

for Dodge 5.7L Hemi Motor Broken Exhaust Manifold Bolt Stud Drill Template 7150071500 Exhaust Manifold Bolt Stud Drill Template Removal Tool Kit Fit For Dodge 5.7L Hemi Motors, Remove Broken Exhaust Manifold Bolts Without Damage Cylinder Head APPLICATION:This exhaust manifold template tool kit is compatible with Dodge 5.7L Hemi motors. To remove broken exhaust manifold bolts on Dodge 5.7L Hemi motors without damaging the cylinder head. EASY TO USE:The 71500 exhaust manifold template removal tool is easy to use. Tapered bolts position the base plate over the bolt holes and slip-fit bushings, allowing you to move from hole to hole without moving the base plate. The screw extractor is then used to remove the damaged bolt. Includes bushing for drilling to tap size when Extractor is not available. FEATURES: The 71500 exhaust manifold drill template tool kit has double-sided drill depth gauge to ensure the water jacket is not pierced. Perfect fit for Dodge 5.7L Hemi Motors. PACKAGE INCLUDE: The exhaust manifold bolts removal tool kit includes stud extractor, drill plate, drill depth gauge, alignment bolt, 8mm tap aligner, lock screw, 1/8'' slip/fix bushing, 3/16'' slip/fix bushing, 17/64'' slip/fix bushing, 1/8'' cobalt drill, 3/16'' cobalt drill, 17/64'' cobalt drill, blow molded case. Made of quality material, solid and durable. -- ---- -- ---If your item is defective, incorrect, arrived damaged or any other problems, please send us emails. Describe the nature of the problem (please include pictures if possible). You will be taken care of as quickly as possible. Use Tapered bolts to mount base plate in place over bolt holes and slip fit bushing, that allows easily move from hole to hole without removing the base plate. Specially designed with double-sided drill depth gauge to make sure the water jacket is not pierced. The same gauge can be used for all bits used in the process. Includes 3 styles of drill bushing for drilling to tap size when Extractor is cannot be available. They perfectly fit for 3 styles of drill bit to use. Greatly reduce the difficulty of maintenance. How to Remove The Broken Exhaust Manifold Bolts1. Have to ensure the surface is clean before mounting correctly the Base Plate. Broken bolts need to be flush.2. Screw the Lock Screw to the Base Plate where you will be drilling the hole.3. Install the Base Plate according to the plate markings and use the Alignment Bolts tightening evenly to make sure the plate centers up.4. Insert the 1/8" Drill Bushing, twisting clockwise it to lock into the locking screw.5. Install the 1/8" Drill Bit in a drill. Use the Drill Depth Gauge to ensure the drill bit isn’t too long to puncturing a water jacket. Run the drill at 500 to 700 RPM. Note: That will allow drilling 1-1/2'' for GM side of gauge, and the1-5/8'' for Dodge.6. In order to keep the Drill Bit cool, apply transmission fluid or cutting oil on the bit or in the hole before and in between drilling. But Do not use penetrating oil.7. Pull out after drilling for 5 to 10 seconds. Reapply lubricant to keep bit cool. Repeat until you get all the way through the bolt.8. Clear the hole of shavings with an air gun.9. Switch to 3/16" Drill Bit & Bushing and drill approximately 1" deep. This will ensure good contact with extractor.10. Remove the Drill Bushing, then tap the Extractor with a hammer and remove the broken bolt.11. If ues the extractor is still unable to remove the broken bolt, put the 3/16" Drill Bushing back in and drill all the way through the bolt with the 3/16" Drill Bit. Then repeat the same process using the 17/64" Drill Bit and Bushing.12. Insert the Tap Guide and use a M8x1.25 Tap to remove the remaining steel from the threads. Screw the tap in and out again until job is complete.BrandOrdertradeManufacturer Part Number71500TypeExhaust Manifold Template Tool KitFitmentFit For Dodge 5.7L Hemi MotorsManufacturer Warranty1 YearOE/OEM Part Number71500Vintage PartYes
