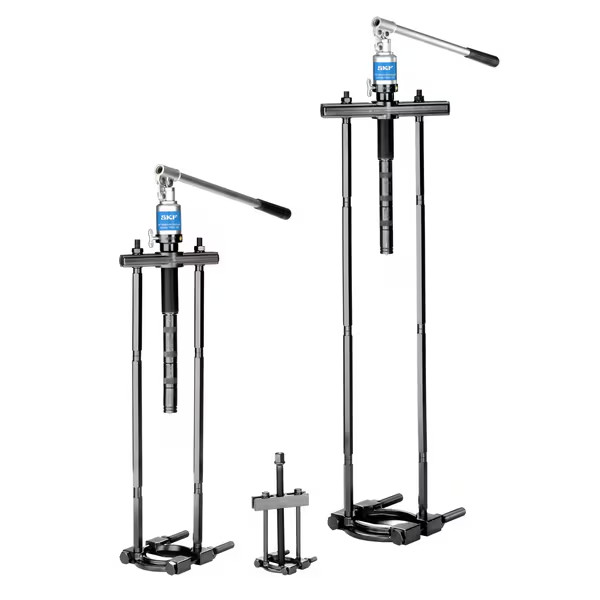

SKF TMBS 100E Strong Back Bearing Puller Set for restricted spaces or long reach
USD 1134.18 USD
Specifications
| Shaft Diameter Range, Using Separator | 0.8 to 4 in |
| Relative Humidity | max 75% |
| Pulling Force (max) | 10.197 tf |
| Separator Height | 0.984 in |
| Recommended Storage Temperature | 41.0 – 104.0 °F |
| Manufacturer Part Number | TMBS 100E |
| UPC | 7316572298466 |
| Colour | Black,Silver |
| Brand | SKF |
| Workpiece Outer Diameter Range, Using Separator | 1.0 to 6.3 in |
| Set Or Single Item | Set |
| Drive | Manual |
| Spindle Nose Piece | yes,1.10 in |
| Country/Region Of Manufacture | Taiwan |
| Hydraulic Spindle, Piston Stroke | 3.15 in |
| Puller Adaptor Thread | UN 1.5 x 16 tpi |

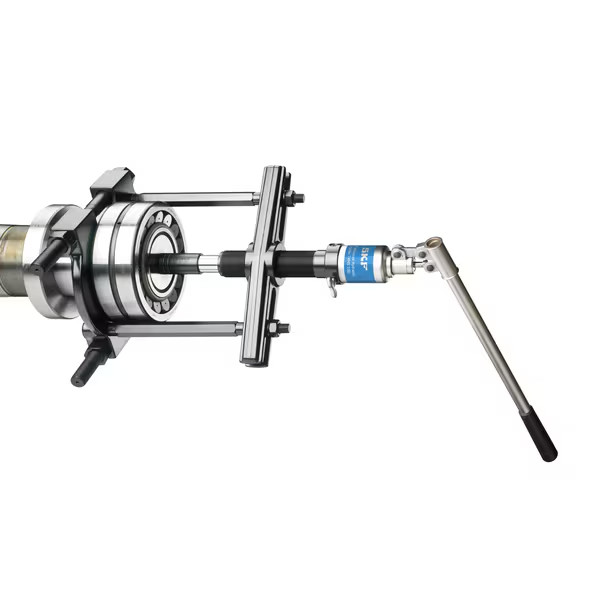

SKF TMBS 100E Strong Back Bearing Puller Set. Strong back puller with Hydraulic spindle The SKF TMBS 100E strong back puller facilitates dismounting of bearings in applications where the use of traditional jaw pullers is restricted due to lack of space or when the application requires a long reach.
Related Items
16PCS Radiator Cooling System Vacuum Purge Gauge Tool Coolant Refilling Kit
DieHard DHP55280 1/4″ Drive 6-PIECE External Star Deep Socket Set & Holder_New!
8 Pcs 1/2″ Drive Impact XZN Triple Square Bit Socket Set M5-M18

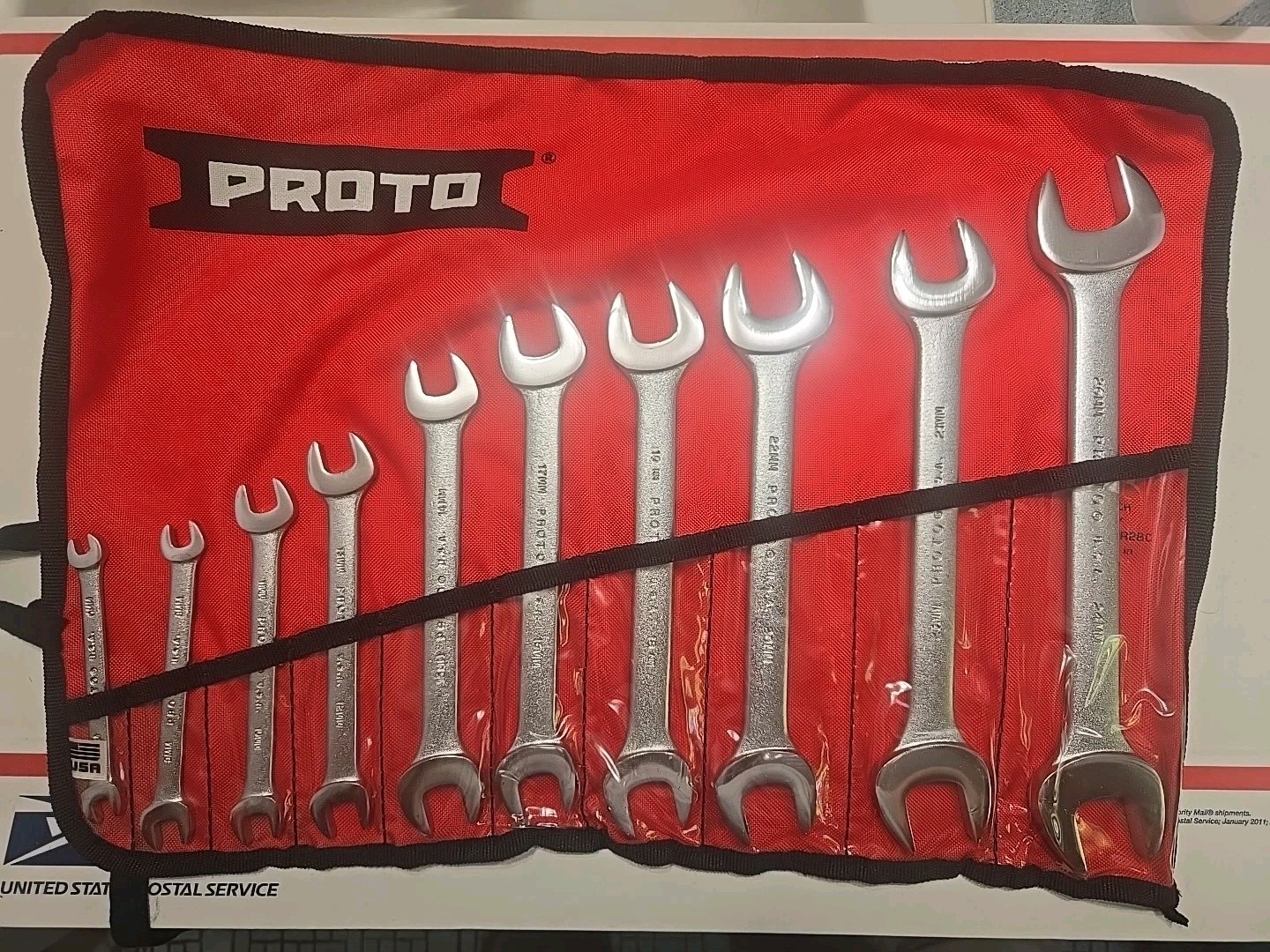

New Proto open-ended metric wrenches 6 to 24mm And 26mm W/pouch USA!
